ECG technology Made in Germany
✔️ 22-lead ECG with only 4 electrodes
✔️ Unrivalled electrode placement reproducibility
✔️ Clinically proven the fastest and most intuitive ECG system
✔️ High-tech ultra-lightweight ECG cable for iOS devices
✔️ 360° ECG through 22 lead recording (I, II, III, aVR, aVL, aVF, V1-V6 plus V7-V9 and VR3-VR9)
✔️ Individual settings for ECG speed, voltage and filters
✔️ Seamless data integration and export options
The CardioSecur Pro technology with only 4 electrodes is only 50g light and clinically proven to be the easiest to use 22 lead ECG system in the world. By means of its few electrodes which are placed in very marked spots of the body, CardioSecur ensures high electrode position reproducibility, mitigation of lead-misplacement and a timesaving ECG recording process. In conjunction with its intuitive app guidance CardioSecur Pro is also the only 22 lead ECG system requiring no training.
*Product not available in the US

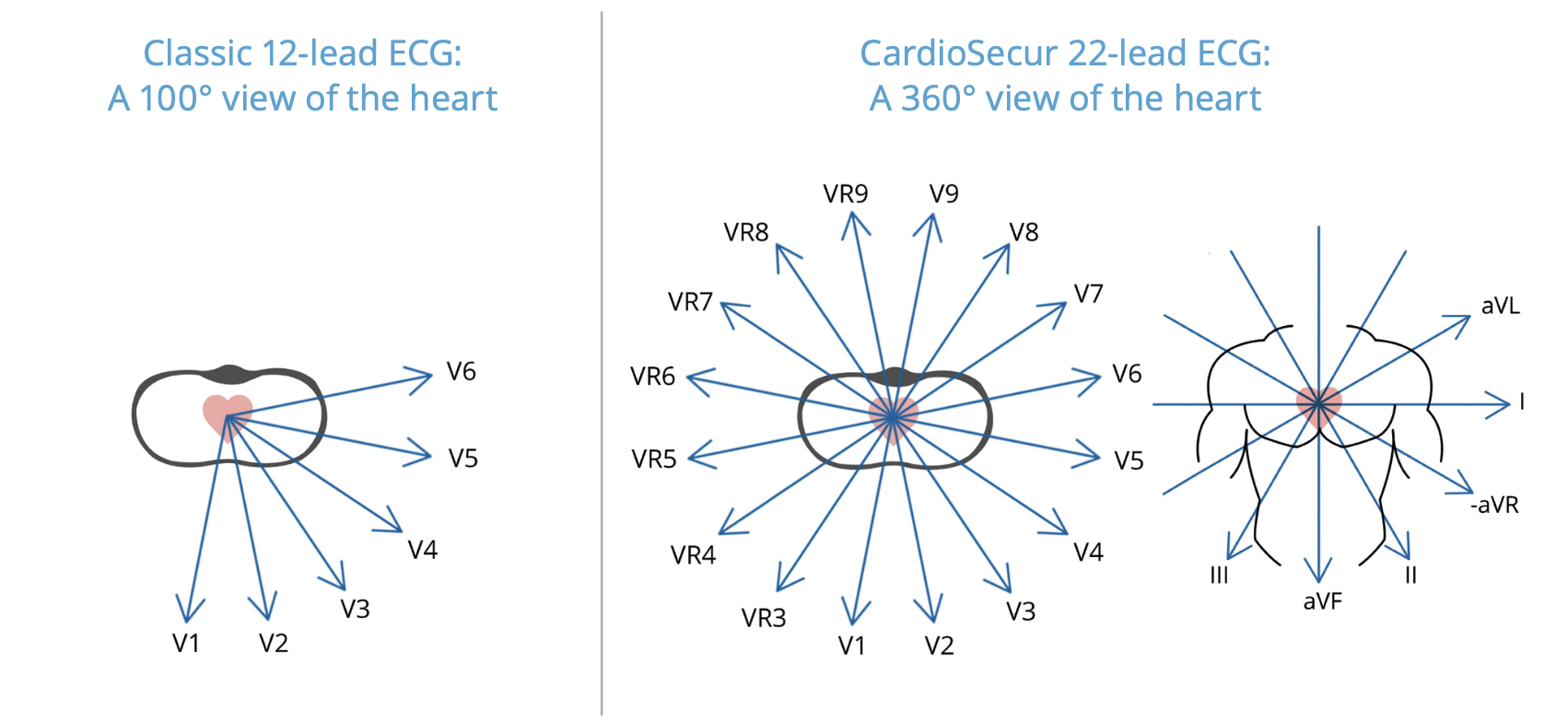

360° View of the Heart

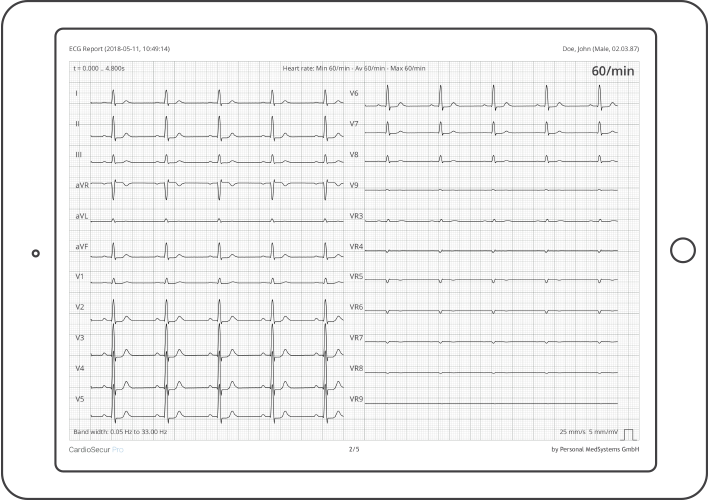

CardioSecur Pro is a mobile, 22-lead ECG for medical personnel running on iPhone/iPad. It accomplishes much more than a standard 12-lead ECG. The ECG recordings are comprised of the standard 12-leads plus optionally V7-V9 and VR3-VR9. In addition to complex arrhythmias, CardioSecur makes it possible to recognize infarcts of the anterior, lateral, and posterior walls of the heart. The European Society of Cardiology guidelines recommend examining the posterior and right walls of the heart. CardioSecur is the only system that practically implements this guideline into its measurement process.

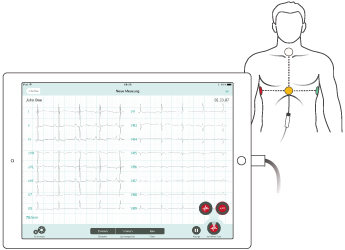

ECG in three steps
Apply electrodes
Perform ECG measurement
ECG report received
Optional features

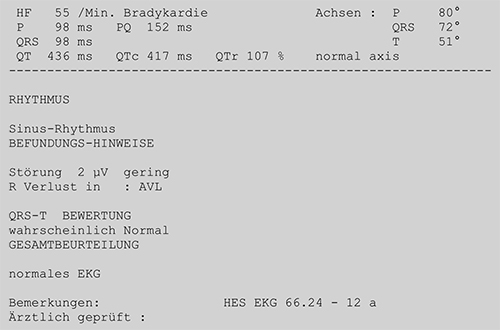

The accurate and reliable analysis and interpretation of 12-lead ECG data is crucial to use the time during medical examinations effectively. The automatic ECG interpretation uses the internationally evaluated HES-algorithm and also includes the paramater measurement of all common ECG segments.
The ECG parameter measurement enables you to automatically determine all common ECG segments (HF, Axes, P, PR, QRS, QTc and QTr). It is based on the licensed HES-algorithm.
